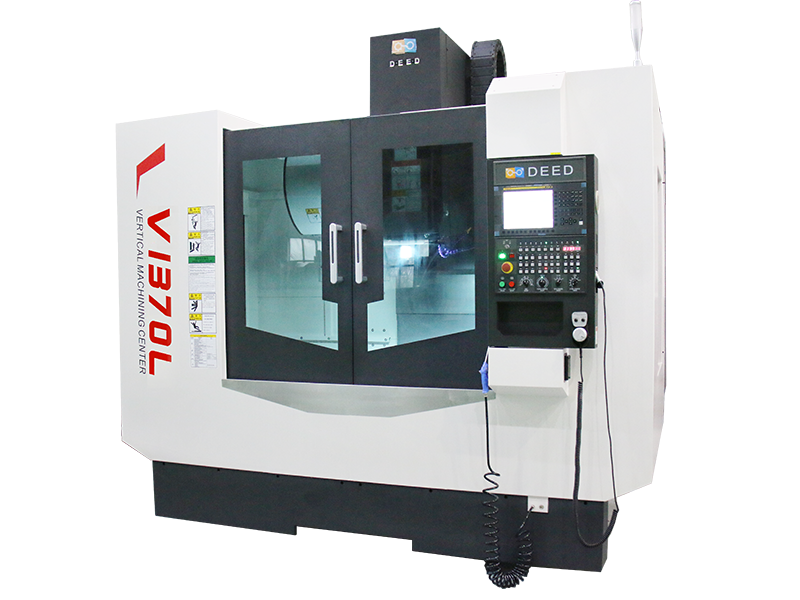

VL series vertical machining center
Product features
The VL series vertical machining center equipment adopts a cross slide table moving structure, and the guide rail adopts a linear rolling guide rail. It is mainly used for processing various small and medium-sized complex parts. It can complete various processing such as milling, drilling, expanding, boring, tapping, and contour milling with one clamping. It is suitable for processing various high accuracy, multi process, and complex shaped parts. After installing a CNC turntable, the machine tool can have a 4-axis/5-axis processing ability.Configuration
VL series vertical machining centerTechnical Parameter
model | Unit | V650L | V850L | V1160L | V1370L | V1580L | V1690L | V1890L | ||||
| Machine range | X/Y/Z-axis stroke | mm | 600/460/510 | 850/510/510 | 1100/610/610 | 1300/710/710 | 1500/810/810 | 1600/910/810 | 1800/910/810 | |||
Distance from spindle nose to worktable | mm | 150～660 | 150～660 | 150～760 | 150～860 | 150-960 | 150-960 | 250-1060 | ||||
| Staging | Workbench size | mm | 600×400 | 950×500 | 1200×600 | 1400×700 | 1700×800 | 1800×900 | 2000×900 | |||
kg | 300 | 500 | 1000 | 1300 | 1500 | 1600 | 2000 | |||||
| Main shaft | Driving method | Direct connection type | Belt Type | Direct connection type | Belt Type | Direct connection type | Belt Type | Direct connection type | Belt Type | Belt Type | Belt Type | |
spindle taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 | BT50 | ||
Maximum work speed | r/min | 12000 | 8000 | 12000 | 8000 | 12000 | 8000 | 12000 | 5000 | 5000 | 5000 | |
Power (rated/maximum)
| kW | 7.5/11 | 11/18.5 | 11/18.5 | 11/18.5 | 11/18.5 | 11/18.5 | 11/18.5 | 11/15 | 11/15 | 15/18.5
| |
Torque (rated/maximum)
| N·m | 35.8/70 | 69/156 | 52.5/118 | 69/156 | 52.5/118 | 69/156 | 52.5/118 | 168/305 | 168/305 | 249/365
| |
| magazine | type | disc | disc | disc | disc | disc | disc | disc | ||||
magazine capacity
| 24 | 24 | 24 | 24 | 24 | 24 | 24 | |||||
Video

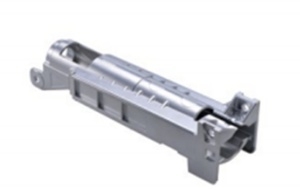

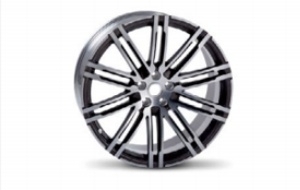

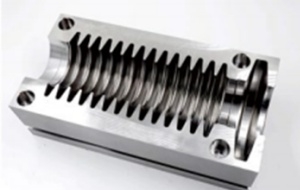

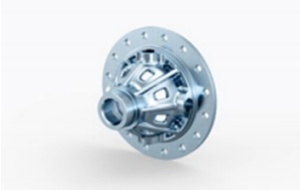

Application
Application
Application
Application
Application
Standard Configuration
CNC system（fanuc）
Three axis roller track
Blowing air through the spindle cone hole
Dust prevention of spindle air curtain
Spindle ring spray
Guide rail protective cover
tri-color light
Automatic Lubrication System
air gun
Integrated machine tool cover
Dual pump Chassis chip cleaning（V650L None）
Workpiece water cooling
Workpiece air cooling
24Tmagazine
heat exchanger
Water gun
Front and right lighting
Shims and adjusting bolts
Handheld pulse generator
Lighting of electrical cabinet box
2G CF card
Random operation and maintenance manual
Which option is most suitable for you?
BT50
air-conditioning
Chip conveyor
Center effluent
Column elevation
Turret tailstock
Oil mist collection
oil-water separation
pneumatic door
Regular optional configuration
Reduction gearbox
Knife alignment instrument
Grating ruler
Workpiece measurement
Air tightness testing
CE requirements
30Tmagazine
Knife breakage detection
Door interlock
Foundation materials
